Retrograde entry portal for femoral interlocking nailing in femoral nonunion after plate failure: a prospective comparative study with antergrade portal

Journal of Orthopaedics and TraumatologyOfficial Journal of the Italian Society of Orthopaedics and Traumatology 201618:416

https://doi.org/10.1007/s10195-016-0416-9

Received: 5 June 2015

Accepted: 26 June 2016

Published: 20 July 2016

Abstract

The piriformis fossa is the ideal portal of entry for antegrade interlocking nailing. Localizing this portal can be difficult and its eccentricity leads to complications. This prospective comparative study was designed to compare an innovative way to obtain the ideal portal from inside the medullary canal in cases of plate failure and compare it to the classic antegrade portal. It included 41 cases (19 antegrade and 22 retrograde). The retrograde portal was significantly better in terms of entry time, radiation time, blood-loss, and wound length. The proper portal was rapidly and easily achieved in all retrograde cases without complications; while four in antegrade cases had complications. Minimum follow-up was 2 years.

Level of evidence III.

Keywords

Failed plate fixationInterlocking nail femurRetrograde portal of entryAntegrade nailingFemoral nonunion

Introduction

There are two portals of entry for antegrade femoral interlocking nailing; they are the greater trochanter and the piriformis fossa. The trochanteric tip should be reserved for nails with a proximal bend specially designed for the trochanteric portal [1]. The piriformis starting point appears to be the best, as the piriformis fossa tends to align with the longitudinal axis of the medullary canal [2]. Obtaining this ideal point can be technically difficult especially in obese patients, requires long radiation exposure, and its eccentricity can have serious consequences, specially its anterior shift [13]. We hypothesized we can provide an alternative technique surgery by making use of the open nature of surgery for plate failure, which must be removed, and obtain the ideal portal from inside the proximal fragment.

Materials and methods

This study included patients with femur nonunion between 2010 and 2013. The inclusion and exclusion criteria are shown on Table 1. Forty-four cases were eligible; three were lost for follow-up; and 41 were categorized into two groups; antegrade 19 cases, and retrograde 22 cases. The inclusion into either group was based on the sequence of admission number. The demographics of the patients, nonunion, and fracture demographics are shown in Tables 2 and 3.
Table 1

Inclusion and exclusion criteria

Inclusion criteria

Exclusion criteria

1. Nonunion after plating

1. Septic nonunion

2. Treatment with reamed interlocking nailing

2. Plate failure after pathological fractures

3. Two years minimum follow-up

Table 2

The demographics of patients and nonunion are shown

Parameter

Group

Mean ± SD

P value

Age

Antergrade (n = 19)

37.1 ± 11.5

0.516

Retrograde (n = 22)

38.1 ± 10.8

Sex

Antergrade

Male

11 (57.9 %)

0.479

Female

8 (42.1 %)

Antergrade

Male

12 (54.5 %)

Female

10 (45.5 %)

Weight (kg)

Antergrade

84.2 ± 5.5

0.105

Retrograde

79.1 ± 6.6

Side

Antergrade

Right

11 (57.9 %)

0.163

Left

8 (42.1 %)

Retrograde

Right

9 (40.9 %)

Left

13 (59.1 %)

Level

Antergrade

Upper third

5 (26.3 %)

0.096

Middle third

13 (68.4 %)

Lower third

1 (5.3 %)

Retrograde

Upper third

0

Middle third

20 (90.9 %)

Lower third

2 (9.1 %)

Comminution

Antergrade

Comminuted

10 (52.6 %)

0.314

Non-comminuted

9 (47.4 %)

Retrograde

Comminuted

9 (40.9 %)

Non-comminuted

13 (59.1 %)

Shape

Antegrade

Transverse

8 (42.1 %)

0.254

Oblique

8 (42.1 %)

Spiral

3 (15.8 %)

Retrograde

Transverse

5 (22.7 %)

Oblique

7 (31.8 %)

Spiral

10 (45.5 %)

Time to plate failure

Antergrade

12.0 ± 5.2 (4–26) weeks

0.813

Antergrade

11.3 ± 4.7 (4–24) weeks

Table 3

The frequency of fractures according to OTA classification

OTA type

Antegrade

Retrograde

32-A1.1

1

2

32-A1.2

2

2

32-A1.3

0

0

32-A2.1

1

0

32-A2.2

2

3

32-A2.3

2

2

32-A3.1

1

0

32-A3.2

4

6

32-A3.3

1

2

32-B1.1

0

0

32-B1.2

0

0

32-B2.1

2

1

32-B2.2

3

5

32-B2.3

0

4

P value between both groups was 0.249

Operative technique

Retrograde portal: hardware was removed. The AO 9 mm end-cutting reamer was introduced from the refreshed nonunion site over the reamer guide rod. After perforating the piriformis fossa, the reamer guide rod was received through a mini proximal wound (Fig. 1). The antegrade portal was done using the classic technique (Fig. 2). We used a Russell–Taylor first generation nail in all cases.
Fig. 1

a The introduction of the reamer up the medullary canal. b The reamer guide-rod inserted through the reamer. c Perforation of the piriformis fossa from within the medullary canal. d The reamer is removed and the reamer guide-rod is exiting from the portal

Fig. 2

a Perforating the piriformis fossa with an awl. b Introducing the reamer guide-rod into the medullary canal in antegrade cases

We calculated blood loss during the whole surgery, entry portal time, radiation time, and proximal incision length. Postoperative plain X-rays were requested to assess nail, locking screws, reduction, and centricity of the nail portal.

Statistical analysis

Data was shown in the form of mean ± SD and range. Paired sample t test, one-way ANOVA, and Pearson test were conducted to detect significant differences between groups. All statistical analyses were done using the SPSS program (SPSS 15.0, SPSS Inc., IL, USA).

Results

Table 4 and Fig. 3 show the final outcome in both groups.
Table 4

Results with comparison between the two groups

Parameter

Mean

SD

Minimum

Maximum

P value

Eccentricity

 Antergrade (n = 19)

0.4

1.0

0.0

4.0

0.069

 Retrograde (n = 22)

0.0

0.0

0.0

0.0

Radiation

 Antergrade

2.7

0.8

1.8

5.6

0.000

 Retrograde

0.4

0.1

0.30

0.70

Blood loss

 Antergrade

0.58

0.10

0.45

0.85

0.015

 Retrograde

0.50

0.12

0.40

0.80

Entry time

 Antergrade

17.2

6.9

10.0

35.0

0.000

 Retrograde

5.3

1.2

3.0

8.0

Wound length

 Antergrade

7.6

1.4

5.0

10.0

0.000

 Retrograde

5.0

0.61

4.0

6.0

Sequence

 Antergrade

0.50

1.1

0.0

4.0

0.055

 Retrograde

0.0

0.0

0.0

0.0

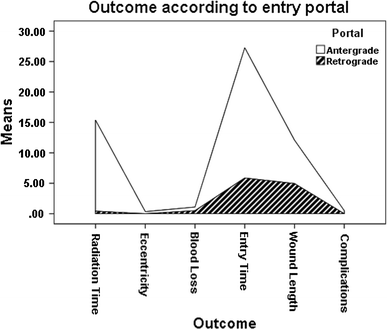

Fig. 3

The final comparative outcome in both groups is plotted

There were significant differences in favor of retrograde portal in terms of entry time, in radiation time, in blood-loss, and proximal wound length.

Proper centric entry was achieved in all cases of retrograde portal and 15 cases of antegrade portal with three cases having lateral shift of portal; and one medial shift (Fig. 4). There was a significant correlation between frontal angulation and the presence of comminuted fractures, as well eccentric portal of entry. Table 5 shows the factors causing varus/valgus angulation; Table 6 shows their statistical significance.
Fig. 4

Two examples of eccentric portal of entry in antegrade cases: a varus angulation at nonunion site due to too lateral portal of entry into the greater trochanter. b Valgus angulation at nonunion site due to too medial portal of entry. While c, the proper portal of entry, was obtained using the retrograde technique with centralization of the nail inside the medullary canal

Table 5

Demographics of cases of frontal angulation

Eccentricity

Level

Shape

OTA type

Comminution

Frontal angulation

Medial

Middle third

Oblique

32-A3.2

Comminuted

5.00

Lateral

Upper third

Oblique

32-B1.1

Comminuted

6.00

Lateral

Middle third

Spiral

32-A1.2

Non-comminuted

5.00

Lateral

Middle third

Transverse

32-A3.3

Comminuted

4.00

Table 6

Significance of factors involved in development of frontal angulation

Dependent variable

Sig.

Eccentricity

0.014

Level

0.424

Shape

0.194

OTA type

0.360

Comminution

0.048

The Pearson test detected significant correlations between the type of portal and entry time, radiation time, blood-loss, and wound length (Table 7).
Table 7

Pearson test

Parameter

Pearson correlation value

Sig. (two-tailed)

Radiation

−0.886

0.000

Eccentricity

−0.332

0.034

Blood loss

−0.379

0.015

Entry time

−0.782

0.000

Wound length

−0.777

0.000

Sequence

−0.349

0.025

Complications

Four cases in the antegrade portal group had eccentric portal: three with lateral shift had a varus angulation (5°–7°) at the nonunion site; and one medial shift had a valgus of 5° angulation.

Discussion

Accomplishing closed reduction and locating the entry portal for nail insertion are the two most important steps in femoral interlocking nailing procedures [2]. The entry point has significant consequences for the ease of insertion and the strength of fixation [3].

There are two entry portals for antegrade femoral interlocking nailing: the piriformis fossa and the trochanteric portal [4]. A piriformis entry (ideally just posterior to its center) appears to be the best, as it tends to align with the longitudinal axis of the medulla [2, 5, 6]. Its disadvantages are the relative technical difficulty compared with retrograde and trochanteric portals [7]. The trochanteric portal is the tip of greater trochanter and its use is limited to nails with a proximal bend for paediatric fractures [8]. The trochanteric-tip portal has a much greater potential of iatrogenic proximal femoral fractures during nail insertion [9]. Both portals do not affect the perfusion of the femoral head [10].

This study tried to test the use of a novel method of obtaining the proper piriformis portal from inside the medulla in a specific situation of femoral nonunion after failed plating, and compared it to the classic antegrade portal.

The weakness of this study is the weak quasi-randomization, and the small number of cases. The strengths are the prospective randomized nature, the numerous statistically significant differences between groups, and the success of obtaining the centric entry in all cases.

Compared to the classic antegrade portal, it had a 69.1 % shorter portal time; 13 % less blood loss; 85 % reduction in fluoroscopy time; and 34 % reduction of entry wound length. The ideal portal was obtained in all retrograde cases with no angulation, eccentricity, or comminution.

The new technique is easier to perform with numerous advantages. It provides a better alternative surgical technique than the classic antegrade portal in femoral nonunion after plate failure or similar conditions requiring open nailing.
