Fast-resorbable antibiotic-loaded hydrogel coating to reduce post-surgical infection after internal osteosynthesis: a multicenter randomized controlled trial

  • Kostantinos Malizos1,
  • Michael Blauth2,
  • Adrian Danita2,
  • Nicola Capuano3,
  • Riccardo Mezzoprete4,
  • Nicola Logoluso5,
  • Lorenzo Drago6, 7 and
  • Carlo Luca Romanò5Email author
Journal of Orthopaedics and TraumatologyOfficial Journal of the Italian Society of Orthopaedics and Traumatology201718:442

https://doi.org/10.1007/s10195-017-0442-2

Received: 19 July 2016

Accepted: 31 December 2016

Published: 2 February 2017

Abstract

Background

Infection is one of the main reasons for failure of orthopedic implants. Antibacterial coatings may prevent bacterial adhesion and biofilm formation, according to various preclinical studies. The aim of the present study is to report the first clinical trial on an antibiotic-loaded fast-resorbable hydrogel coating (Defensive Antibacterial Coating, DAC®) to prevent surgical site infection, in patients undergoing internal osteosynthesis for closed fractures.

Materials and methods

In this multicenter randomized controlled prospective study, a total of 256 patients in five European orthopedic centers who were scheduled to receive osteosynthesis for a closed fracture, were randomly assigned to receive antibiotic-loaded DAC or to a control group (without coating). Pre- and postoperative assessment of laboratory tests, wound healing, clinical scores and X-rays were performed at fixed time intervals.

Results

Overall, 253 patients were available with a mean follow-up of 18.1 ± 4.5 months (range 12–30). On average, wound healing, clinical scores, laboratory tests and radiographic findings did not show any significant difference between the two groups. Six surgical site infections (4.6%) were observed in the control group compared to none in the treated group (P < 0.03). No local or systemic side-effects related to the DAC hydrogel product were observed and no detectable interference with bone healing was noted.

Conclusions

The use of a fast-resorbable antibiotic-loaded hydrogel implant coating provides a reduced rate of post-surgical site infections after internal osteosynthesis for closed fractures, without any detectable adverse event or side-effects.

Level of evidence

2.

Keywords

Infection Prevention Osteosynthesis DAC Hydrogel Coating

Introduction

The Centers for Disease Control (CDC) healthcare-associated infection (HAI) prevalence survey estimated 157,500 surgical site infections (SSIs) associated with inpatient surgeries in 2011 in the USA [1] (Table 1).
Table 1

Criteria for defining a surgical site infection (SSI), according to the CDC criteria (cf. https://www.cdc.gov/hicpac/SSI/table1-SSI.html)

Superficial incisional SSI

Infection occurs within 30 days after the operation and infection involves only skin or subcutaneous tissue of the incision and at least one of the following:

 Purulent drainage, with or without laboratory confirmation, from the superficial incision

 Organisms isolated from an aseptically obtained culture of fluid or tissue from the superficial incision

 At least one of the following signs or symptoms of infection: pain or tenderness, localized swelling, redness, or heat and superficial incision is deliberately opened by surgeon, unless incision is culture-negative

 Diagnosis of superficial incisional SSI by the surgeon or attending physician

Do not report the following conditions as SSI

 Stitch abscess (minimal inflammation and discharge confined to the points of suture penetration)

 Infection of an episiotomy or newborn circumcision site

 Infected burn wound

 Incisional SSI that extends into the fascial and muscle layers (see deep incisional SSI)

Deep incisional SSI

Infection occurs within 30 days after the operation if no implant† is left in place or within 1 year if implant is in place and the infection appears to be related to the operation and infection involves deep soft tissues (e.g., fascial and muscle layers) of the incision and at least one of the following:

 Purulent drainage from the deep incision but not from the organ/space component of the surgical site

 A deep incision spontaneously dehisces or is deliberately opened by a surgeon when the patient has at least one of the following signs or symptoms: fever (>38 °C), localized pain, or tenderness, unless site is culture-negative

 An abscess or other evidence of infection involving the deep incision is found on direct examination, during reoperation, or by histopathologic or radiologic examination

 Diagnosis of a deep incisional SSI by a surgeon or attending physician

Organ/space SSI

Infection occurs within 30 days after the operation if no implant† is left in place or within 1 year if implant is in place and the infection appears to be related to the operation and infection involves any part of the anatomy (e.g., organs or spaces), other than the incision, which was opened or manipulated during an operation and at least one of the following:

 Purulent drainage from a drain that is placed through a stab wound‡ into the organ/space

 Organisms isolated from an aseptically obtained culture of fluid or tissue in the organ/space

 An abscess or other evidence of infection involving the organ/space that is found on direct examination, during reoperation, or by histopathologic or radiologic examination

 Diagnosis of an organ/space SSI by a surgeon or attending physician

Report infection that involves both superficial and deep incision sites as deep incisional SSI

Report an organ/space SSI that drains through the incision as a deep incisional SSI

In spite of improved operating room, sterilization methods, barriers, surgical technique and routine systemic antimicrobial prophylaxis [25], SSIs are still considered to be the most common and costly healthcare-associated infection, accounting for 31% of all HAIs among hospitalized patients [6, 7].

After osteosynthesis for closed fractures, early SSI had a reported incidence of 3.9% in a large multicenter trial, with a median time to diagnosis of 30 days [8], while wound healing problems, like those occurring in subcutaneous osteosynthesis [9], and the presence of co-morbidities may increase the risk of septic complications up to 10% [1012]. In a more recent retrospective study, the rates of infection within 1 year from internal osteosynthesis after closed and open fractures have been reported to be 4.2 and 14.7%, respectively [13]. Implant-related infections often require implant removal, with high morbidity and possible increased mortality [9] and elevated economic and social costs [14].

In this context, antibacterial coatings of implants may represent an attractive option to reduce post-surgical infections [15]. A strong recommendation was delivered in a recent international Consensus meeting on peri-prosthetic joint infections, concerning the need for developing effective antibacterial surfaces that prevent bacterial adhesion and colonization of implants and proliferation into the surrounding tissues [16]. However, only few anti-bacterial coating technologies are currently available in orthopedics and trauma and, for various reasons, they are still far from large-scale application [17, 18].

Developing a new antibacterial coating appears challenging. Since bacterial colonization, from microbial adhesion to an established mature biofilm layer, only takes a few hours [19], any antibacterial protection should act at the exact time of surgery and possibly only for a few hours or days thereafter, to minimize the risk of long-term bacterial resistance induction. Moreover, any new technology has to demonstrate safety and lack of interference with bone healing and should prove to be effective as well as sufficiently easy to manufacture and implement into the current clinical practice. Finally, it should be available at an affordable price, after having passed the scrutiny of the complex regulatory pathway [20]. Biocompatible hydrogels have been shown to be able to deliver pharmacological agents locally and can be designed to meet the desired elution pattern [21]. Recently, a fast-resorbable hydrogel coating that can be loaded intra-operatively with various antibacterials has been developed [22]. Based on the observation that bacterial colonization occurs within the first hours after implant and that short-term systemic prophylaxis is equally effective as long-term to prevent post-surgical infections [23], this coating technology introduced for the first time the concept of ‘short-term local protection’ of the implant. In fact, a short-term local delivery system may meet the requirements needed to win the ‘run to the surface’, while limiting possible long-term unwanted side-effects [24]. This novel fast-resorbable hydrogel coating (Defensive Antibacterial Coating, DAC®; Novagenit Srl, Mezzolombardo, Italy) is composed of covalently linked hyaluronan and poly-d,l-lactide and is designed to undergo complete hydrolytic degradation in vivo within 48–72 h as well as being able to completely release a variety of different antibacterials at concentrations ranging from 2−10%. The hydrogel showed synergistic antibacterial and antibiofilm activity with various antibiotics and antibiofilm agents in vitro [25], while in vivo it has been proven effective in a rabbit model of highly contaminated implant both with [26] and without systemic prophylaxis, without interfering with bone growth [27]. Following previous brief reports [28, 29], we present the clinical results of a multicenter European trial comparing the SSI rate between patients treated with DAC hydrogel-coated osteosynthesis implants and patients treated with non-coated implants.

Materials and methods

From January 2014 to June 2015, 256 patients (Fig. 1) were included in this prospective multicenter randomized study. The study protocol was approved by the local Ethical Committees of the five participating centers. All patients gave their informed consent to the procedure. The study was performed within the 7th European Framework Programme (project #277988) and funded by the European Commission and the participating partners (clinical institutions and the following private companies: Novagenit SRL, Mezzolombardo, Italy, acting as project leader; AdlerOrtho SRL, Bologna, Italy; Arcos SARL, Brignoles, France; Belgafix SPRL, Drogenbos, Belgium).

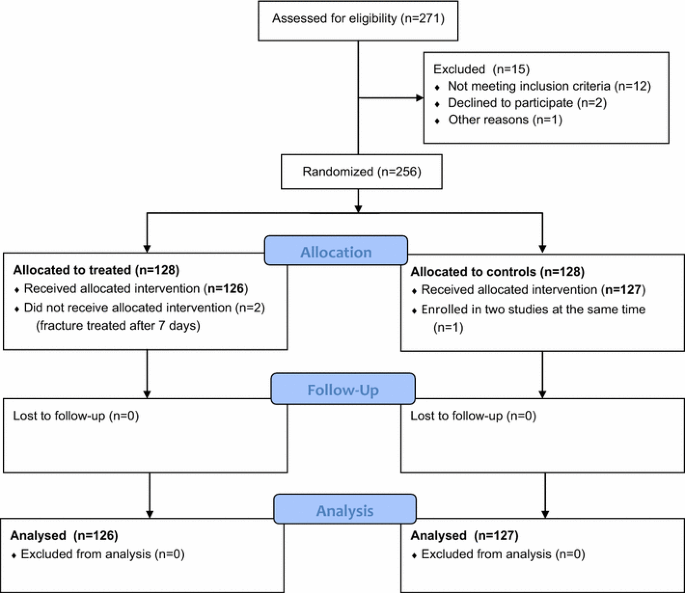

Fig. 1

‘Consort flow diagram’ of enrolled patients

The patients, in five European orthopedic centers, were randomly assigned through electronic software to receive antibiotic-loaded DAC or to a control group (without coating).

Inclusion criteria were the presence of a fresh (<7 days) closed fracture requiring surgical reduction and internal fixation with either a metal plate and/or screws or with an intramedullary nail, in patients aged >18 years. Exclusion criteria were pregnancy, breast-feeding or planning to become pregnant during the study, the presence of a previous or active infection at site of fracture, severe malignancies with a life expectancy of <3 months, previous diagnosis of immune depression (including HIV) or immune suppressive treatment for organ transplantation, known allergy to the antibiotics or to DAC hydrogel constituents, patient not willing or not able to present for the follow-up consultations or if the patient did not sign the informed consent documents or was not able to do so.

Surgical treatment and DAC preparation

After routine preoperative work-out, all patients were treated according to the current principles of fracture reduction and internal osteosynthesis. The choice of the surgical approach and the type of osteosynthesis was left to each participating surgeon.

Systemic antibiotic prophylaxis was performed with perioperative administration of a single dose of the antibiotic chosen at each center [30]. All patients also received low-weight heparin for deep vein thrombosis prophylaxis starting on the day of surgery and for 4–6 weeks postoperatively.

Allowed fixation materials included plating, screw and intramedullary nailing systems from Stryker Inc. (New York, USA), Smith-Nephew (London, UK) and DePuy-Synthes (Warsaw, IN, USA), respectively.

Reconstitution of the DAC hydrogel was performed according to the manufacturer’s instructions. Briefly, the prefilled syringe, containing 300 mg sterile DAC powder, was filled at surgery with a solution of 5 mL sterile water for injection and the desired antibiotic. This allowed the antibiotic-loaded hydrogel with a DAC concentration of 6% (w/v) and an antibiotic concentration ranging from 20−50 mg/mL to be prepared in ~3–5 min, depending on the choice of the surgeon. The surgeons could choose the antibiotic from a list of antibacterials previously tested as being compatible with the hydrogel, including gentamicin, vancomycin, daptomycin, meropenem, rifampicin, and ciprofloxacin [25] (Novagenit SRL, data on file).

According to previous studies showing the ability of the hydrogel to resist press-fit insertion [2527], the hydrogel was directly spread onto the implant surface prior to its insertion into the body, a few minutes after reconstitution. Further hydrogel was eventually applied on the synthesis after its positioning on the bone and at the bone−synthesis interface, in order to achieve complete coverage of the implant surface. Similarly, the hydrogel was applied directly on each pre-drilled screw hole and directly on the screws, at the time of their insertion (Fig. 2). A similar technique was used for coating intramedullary nails and locking screws.
Fig. 2

The ‘Defensive Antibacterial Coating’ (DAC®) hydrogel coating is spread onto a plate and a screw for osteosynthesis in an ankle fracture

Assessments

All patients underwent preoperative clinical and radiographic examinations and laboratory tests. Host type was classified according to McPherson et al. [31]. Clinical evaluations, serum laboratory tests and radiographic examinations were also scheduled at 6 ± 4 weeks, 3 months ± 4 weeks, and at 6, 12, 18 and 24 months ± 8 weeks postoperatively.

The primary outcome of the study was the reduction of SSI at a minimum 12-month follow-up in the treated versus the control group. SSI was defined as the presence of positive local clinical signs of inflammation, including pain, redness, warmth, swelling, draining wound, fistulas, etc., according to the CDC procedure-associated module SSI (https://www.cdc.gov/hicpac/SSI/table1-SSI.html) (Table 1), requiring unplanned antibiotic treatment and/or surgery, e.g., early synthesis removal or debridement, with or without a positive cultural examination.

Secondary outcomes were the absence of adverse events and side-effects related to the hydrogel coating, as assessed by clinical, laboratory and radiographic examinations.

To this aim, clinical evaluation was performed using the SF-12 score at follow-up, while serious adverse events and any complication or side-effects were recorded whenever necessary at follow-up. Wound healing was assessed at 7 and 14 days using the ASEPSIS score, described by Wilson et al. [32], while delayed wound healing was defined as incomplete healing of the wound after 4 weeks from surgery, including the presence of wound dehiscence, necrosis or serum leakage that may need further medication but did not require any additional surgical treatment.

Laboratory tests, including erythrocyte sedimentation rate, C-reactive protein, hemocromocytometric, and liver and kidney function markers, were performed at follow-up until 6 months after surgery and whenever SSI was suspected.

Radiographic examination was performed by an independent radiologist not aware of the DAC treatment. Bone healing was defined as the presence of visible bridging between two cortices, while delayed union was defined as a lack of bone healing 6 months after trauma. A non-union was identified when a period of 9 months had elapsed with no healing progress for 3 months.

Sample size calculation

The primary outcome of this trial was the rate of SSI at a minimum of 12 months postoperation, defined as reported above.

Two hundred and fifty-six patients listed for osteosynthesis of fresh fractures were recruited to the intervention arm or to the standard care arm. Assuming an average expected rate of SSI after osteosynthesis of 6.0% in the control group [8, 9, 13] and an SSI rate of 0.1% in the treated group, a sample size of 122 patients in each arm is sufficient to detect a clinically important difference between the two groups with 80% power and 5% level of significance, as calculated using a two-tailed z test of proportions [33]. This significant expected effect size is based upon the rate of post-surgical infection previously investigated in animal models of implant-related infection, using the DAC device [26]. The sample size of 256 patients takes into account an expected drop-out rate of ~9%.

Statistical analysis

In order to detect a reduction in the rate of deep SSI from 6.0 to 1.0% for a two-sided 5% level of significance and 80% power, for the selected binary outcome we needed a total of 244 participants, assuming a chi-squared test as the definitive analysis.

Baseline demographic and comorbidity data were summarized to check comparability between treatment arms. To assess whether there was any evidence of systematic imbalance introduced by the randomization procedure, we also undertook formal statistical testing of differences in baseline characteristics between treatment arms using independent samples t tests and Fisher’s exact test or chi-squared tests, with significance set at the 5% level.

Differences between the groups for other secondary outcomes, including clinical and laboratory tests and complications were assessed using chi-squared and Fisher’s exact tests as appropriate.

Results

Overall 253 patients (126 treated and 127 controls) were available with an average follow-up of 18.1 ± 4.5 months (range 12–30) and were considered for further analysis (Fig. 1).

The two groups did not differ significantly regarding age, sex and host type. In particular, approximately half of the patients in both groups presented with one or more relevant co-morbidities known to increase post-surgical infection risk (Table 2).
Table 2

Demographic and preoperative data of the patients included in the study



Controls

%

Treated

%

P

Male

57

44.9

53

42.1

0.70

Female

70

55.1

73

57.9



Total

127

100.0

126

100.0



Age (years)

 Mean ± SD

58.6 ± 17.6



62.5 ± 21.2



0.11

 Min–max

20–95



21–99



Host type

 A

70

55.1

60

47.6

0.25

 B

53

41.7

61

48.4



 C

4

3.1

5

4.0



Fracture site

 Femur

32

25.2

47

37.3



 Tibia/knee

11

8.7

16

12.7



 Ankle/foot

29

22.8

32

25.4



 Clavicle

11

8.7

10

7.9



 Humerus

8

6.3

6

4.8



 Forearm/wrist

29

22.8

14

11.1



 Hand

7

5.5

1

0.8



Host type classified according to McPherson’s classification

Perioperative data (Table 3) show that the majority of patients were treated with plate/screws and <10% in both groups underwent nail fixation.
Table 3

Perioperative data



Controls

%

Treated

%

Type of fixation

 Plate/screws

117

92.1

115

91.3

 Intramedullary nail

10

7.9

11

8.7

Systemic prophylaxis

 Cefazolin

70

55.1

69

54.8

 Cefazolin + amikacin

37

29.1

31

24.6

 Cefazolin + vancomicin

20

15.7

26

20.6

DAC volume (mL)

 Mean ± SD

N/A



5.7 ± 3.0



 Min–max

N/A



1–10



DAC + gentamicin

N/A



78

61.9

DAC + vancomycin

N/A



46

36.5

DAC + vancomicin + meropenem

N/A



2

1.6

Cefazolin was the most used antibiotic for short-term systemic prophylaxis in both groups, either alone or in association with amikacin or vancomycin.

On average, 5.7 mL (range 1–10 mL) of DAC hydrogel was needed to coat the implant. Gentamicin and vancomycin were the most used antibiotics, at concentrations of 4 or 2%, respectively.

Early wound healing did not show any difference between groups, with an average ASEPSIS score at 7 and 14 days of 1.53 ± 3.94 and 1.93 ± 5.09 in the control group and 1.51 ± 4.14 and 1.33 ± 4.32 in the treated group, respectively. Delayed wound healing occurred in 7 (5.5%) and 5 (3.9%) in the control and treated group, respectively.

Unplanned antibiotic treatment during hospital stay, for reasons other than SSI (mainly urinary or respiratory tract infections), was reported in 12 (9.4%) and 10 (8%) patients in the control and treated groups, respectively (P = 0.8).

At 6 months, average serum laboratory tests (hematological, renal and hepatic function) did not show any significant difference between groups (Table 4).
Table 4

Serum laboratory tests at 6 months post-surgery



Controls (mean ± SD)

Treated (mean ± SD)

P

Erythrocyte sedimentation rate (mm/h)

14.3 ± 16

17.3 ± 17

0.32

C-reactive protein (mg/L)

4.1 ± 8.3

4.2 ± 4.6

0.93

Hemoglobin (g/100 mL)

14.6 ± 1.2

14.3 ± 1.7

0.26

White blood cells (cells/mL)

7538 ± 2079

7352 ± 1452

0.57

PMN (%)

59.2 ± 8.5

59.5 ± 7.8

0.84

Creatinine (mg/dL)

0.9 ± 0.19

0.88 ± 0.17

0.54

SGOT (U/L)

21 ± 14.6

22.8 ± 15.5

0.34

SGPT (U/L)

20.4 ± 20.7

23.9 ± 15.5

0.12

GAMMA-GT (U/L)

35.9 ± 33.5

42.5 ± 55

0.24

PMN polymorphonuclear leukocytes; SGOT Serum Glutamic Oxaloacetic Transaminase; SGPT Serum Glutamic Pyruvic Transaminase; GAMMA-GT Gamma-Glutamyl Transferase

At an average 12-month follow-up, average SF-12 clinical score did not differ significantly between groups (Table 5).
Table 5

Postoperative data at the latest follow-up



Controls (N = 127)

%

Treated (N = 126)

%

P

Follow-up (months)

 Mean ± SD

18.1 ± 5.2



18.1 ± 3.5



1.0

 Min–max

12–30



12–26



SF-12-physical score

 Mean ± SD

46 ± 11.8



49.3 ± 9.7



SF-12-mental score

 Mean ± SD

54.4 ± 9.5



52.4 ± 10.6



SF-12-total score

 Mean ± SD

101.7 ± 15.4



100.5 ± 14.2



0.51

Complications

 Surgical site infection

6

4.7

0

0.0

0.03

 Delayed wound healing

7

5.5

5

3.9

0.76

 Delayed union

5

3.9

2

1.6

0.44

Delayed union was observed in 5 (3.9%) patients in the control group, compared to 2 (1.6%) in the treated group (P = 0.4).

No adverse events attributable to the DAC hydrogel were reported. No detectable interaction was observed between the hydrogel and bone healing. Six SSIs were reported in the control group (4.7%), compared to none in the treated group (P = 0.03). One patient in the control group underwent early plate removal for plate intolerance, without reported signs of infection. Detailed information regarding septic complications, including treatment and outcomes are provided in Table 6.
Table 6

Data from patients with surgical site infection

Patient no.

Age

Sex

Host type

Relevant co-morbidities

Diagnosis

Type of osteosynthesis

Onset of infection (months from surgery)

Cultural examination

Other complications

Treatment

Final outcome

1

47

M

A

None

Weber C fibula fracture

Plate and screws

1

Negative

Delayed wound healing

Prolonged antibiotic treatment

No infection recurrence

2

39

M

B

Nicotine abuse

Clavicula fracture

Plate and screws

1

Negative

Delayed wound healing

Early plate removal and debridement

No infection recurrence

3

29

M

C

Nicotine and alcohol abuse

Ankle fracture

Plate and screws

2

Corynebacterium spp.

Delayed wound healing

Early plate removal and debridement

No infection recurrence

4

88

F

C

Diabetes, peripheral vasculopathy, old age

Proximal femur fracture

Plate and screws

6

Staph. epidermidis



Early plate removal and debridement

Infection persistence

5

90

F

B

Diabetes, old age

Proximal femur fracture

Plate and screws

6

Escherichia coli



Early plate removal and debridement

No infection recurrence

6

75

F

C

Severe rheumatoid arthritis, old age, corticosteroid therapy

Peri-prosthetic supracondilar femoral fracture

Plate and screws

2

MRSA

Delayed-union

Plate removal and two-stage knee revision prosthesis

No infection recurrence

Discussion

This is the first clinical trial reporting on the efficacy and safety of DAC coating for internal osteosynthesis.

Concerning efficacy, this study shows that the studied antibiotic-loaded hydrogel coating is able to significantly reduce early SSIs after osteosynthesis, at an average 18-month follow-up. This finding is in agreement with earlier in vivo studies [26, 27] and with a recently published multicenter clinical trial on the use of DAC coating in total hip and knee cementless or hybrid total joint replacement [34]. It is also the first clinical demonstration that short-term local prophylaxis may significantly reduce post-surgical septic complications in internal osteosynthesis for closed fractures.

Clinical demonstration of safety is a basic requirement of any novel coating technology [18, 35]. The reported combined data from five European centers indicate that the device under study can be considered clinically safe, when used in combination with internal osteosynthesis, without any detectable local side-effects both concerning wound and bone healing, at a medium-term follow-up. Moreover, no changes in organ-specific serum markers or systemic unwanted effects were recorded. This finding is in line with previous data from in vivo and clinical studies [26, 27, 34]. The high biocompatibility of its basic constituents and the short time (<3 days) needed for complete hydrogel resorption [22, 25] make the possible occurrence of longer term side-effects unlikely.

In isolated reports, antibacterial coatings have previously been shown to be clinically effective in reducing septic complications; however their application to osteosynthesis is limited [18, 28].

Silver coating is among the most extensively studied antibacterial agents. Dissolved silver ions are biochemically active agents, able to interfere with bacterial cell membrane permeability and cellular metabolism. Silver also contributes to the formation of reactive oxygen species and to other mechanisms that potentially influence prokaryotic cells [36]. There has been concern, however, about the toxicity of silver ions [37] and to overcome this issue, research efforts have recently focused on new silver-coating technologies, that are reported to reduce or even eliminate toxicity while maintaining antibacterial effects [38, 39]. However, despite a demonstrated clinical efficacy and safety in two comparative studies on a limited series of patients treated with oncological endoprosthesis [40, 41], the routine use of silver-coated implants remains limited while, to the best of our knowledge, its application to fracture fixation devices has never been investigated.

A different approach, consisting of the local administration of antibiotics in order to protect an implant, historically attracted much attention in orthopedics. Buchholz et al. first popularized the incorporation of antibiotics into polymethylmethacrylate (PMMA) bone cement for local antibiotic prophylaxis in cemented total joint arthroplasty [42] and, although the use of antibiotic-loaded PMMA coating of nails is gaining increasing interest to treat osteomyelitis, septic non-unions and contaminated fractures [43], comparative clinical studies are lacking. Moreover, PMMA may not be used as a coating for plate osteosynthesis or screws and antibiotic-loaded PMMA may not overcome biofilm formation and has been found to be associated with the development of antibiotic-resistant ‘small-colony variants’ [44, 45].

Other porous biodegradable materials for local antibiotic delivery, like collagen sponges [46], cancellous bone [47], calcium phosphate [48, 49] and bioceramics [50], were not specifically designed to protect implanted biomaterials and their use for infection prevention in trauma is currently limited.

Biodegradable polymers and sol–gel coatings have also been investigated to provide a controlled antibiotic release on titanium [51, 52] or hydroxyapatite implants [53]. However, the most known clinical applications of this approach are probably antibiotic-loaded d-poly-lactate acid/gentamycin intramedullary coated nails that, until now, only showed some positive results in a limited series of patients [17].

In this setting, an antibiotic-loaded fast-resorbable hydrogel coating may offer ease of use, versatility and large scale applications, opening the way to an affordable wide application of antibacterial implant protection, as recently shown in a multicenter trial focused on infection prevention in total hip and knee replacement [34].

This study has some limitations. First, the follow-up is relatively short. Although the minimum 12-month monitoring appears adequate to detect early post-surgical septic complications, exceeding that defined in the IDSA Guidelines [54], and appears adequate to detect the vast majority of SSIs after osteosynthesis [8, 9], longer follow-up could be useful to further investigate the ability of the tested device to eventually prevent the occurrence of delayed and late infections. Second, the designed study deliberately left the participating centers free to choose the systemic antibiotic used for prophylaxis, as well as the one added to the hydrogel locally. To our knowledge, as there is no clear evidence showing the superiority of one antibiotic prophylaxis over another [55], it was decided to leave each center free to decide the prophylaxis on the basis of their experience and the regional microbiology, instead of imposing a fixed arbitrary regimen. Moreover, the main activity of the DAC hydrogel is thought to be its anti-adhesive effect, as recently reported [56], while the presence of the antibiotic in the hydrogel is intended to eventually kill the remaining planktonic bacteria and is ancillary to the main activity of the device. All things considered, the choice to leave the centers free to choose the type of antibiotic did finally provide homogeneous and comparable data and may actually better simulate the real-life possible clinical scenario once the DAC device will be available to market. Other limitations of the study concern the exclusion of exposed fractures or other potentially challenging clinical situations, in which an antibacterial coating could eventually be useful. This will be the object of further planned studies.

Declarations

Acknowledgements

The study was performed and partially funded under the iDAC, Collaborative Research Project Number 277988 within the 7th European Framework Programme.

Compliance with ethical standards

Conflict of interest

The authors declare that they have no conflict of interest.

Patient consent

Informed consent was obtained from all individual participants included in the study.

Ethical approval

All patients gave the informed consent prior being included into the study. All procedures involving human participants were in accordance with the 1964 Helsinki declaration and its later amendments. The study was approved by the responsible Research Ethics Committee or Institutional Review Board.

Funding

The study was performed within the 7th European Framework Programme (project #277988) and funded by the European Commission and the participating partners (clinical institutions and the following private companies: Novagenit SRL, Mezzolombardo, Italy, acting as project leader; AdlerOrtho SRL, Bologna, Italy; Arcos SARL, Brignoles, France; Belgafix SPRL, Drogenbos, Belgium).

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Orthopaedic Surgery and Trauma, Medical School, University of Thessaly
(2)
Department for Trauma Surgery, Medical University
(3)
Department for Orthopaedics, San Luca Hospital
(4)
Department for Orthopaedics, San Camillo de Lellis Hospital
(5)
Department of Reconstructive Surgery of Osteo-articular Infections CRIO Unit, IRCCS Galeazzi Orthopaedic Institute
(6)
Laboratory of Clinical Chemistry and Microbiology, IRCCS Galeazzi Orthopaedic Institute
(7)
Laboratory of Medical Technical Sciences, Department of Biochemical Sciences for Health, University of Milano

References

  1. Magill SS et al (2014) Multistate point-prevalence survey of health care-associated infections. N Engl J Med 370(13):1198–1208View ArticlePubMedPubMed CentralGoogle Scholar
  2. An YH, Friedman RJ (1996) Prevention of sepsis in total joint arthroplasty. J Hosp Infect 33:93–108View ArticlePubMedGoogle Scholar
  3. Humphreys H (2012) Surgical site infection, ultraclean ventilated operating theatres and prosthetic joint surgery: where now? J Hosp Infect 81:71–72View ArticlePubMedGoogle Scholar
  4. Jamsen E, Furnes O, Engesaeter LB, Konttinen YT, Odgaard A, Stefansdottir A et al (2010) Prevention of deep infection in joint replacement surgery. Acta Orthop 81:660–666View ArticlePubMedPubMed CentralGoogle Scholar
  5. Illingworth KD, Mihalko WM, Parvizi J, Sculco T, McArthur B, el Bitar Y, Saleh KJ (2013) How to minimize infection and thereby maximize patient outcomes in total joint arthroplasty: a multicenter approach: AAOS exhibit selection. J Bone Jt Surg Am 95:e50View ArticleGoogle Scholar
  6. Magill SS et al (2012) Prevalence of healthcare-associated infections in acute care hospitals in Jacksonville, Florida. Infect Control Hosp Epidemiol 33(3):283–291View ArticlePubMedPubMed CentralGoogle Scholar
  7. Anderson DJ, Podgorny K, Berríos-Torres SI et al (2014) Strategies to prevent surgical site infections in acute care hospitals: 2014 Update. Infect Control Hosp Epidemiol 35(6):605–627View ArticlePubMedPubMed CentralGoogle Scholar
  8. Merrer Jacques, Girou Emmanuelle, Lortat-Jacob Alain, Montravers Philippe, Lucet Jean-Christophe, Groupe de Recherche sur l’Antibioprophylaxie en Chirurgie (2007) Surgical site infection after surgery to repair femoral neck fracture: a French multicenter retrospective study. Infect Control Hosp Epidemiol 8(10):1169–1174View ArticleGoogle Scholar
  9. Bonnevialle P, Bonnomet F, Philippe R, Loubignac F, Rubens-Duval B, Talbi A, Le Gall C, Adam P, SOFCOT (2012) Early surgical site infection in adult appendicular skeleton trauma surgery: a multicenter prospective series. Orthop Traumatol Surg Res 98(6):684–689View ArticlePubMedGoogle Scholar
  10. Berbari EF, Osmon DR, Lahr B, Eckel-Passow JE, Tsaras G, Hanssen AD, Mabry T, Steckelberg J, Thompson R (2012) The Mayo prosthetic joint infection risk score: implication for surgical site infection reporting and risk stratification. Infect Control Hosp Epidemiol 33:774–781View ArticlePubMedGoogle Scholar
  11. Heppert V (2012) Acute infection after osteosynthesis. European instructional lectures: 13th EFORT Congress, vol 12. Springer Science and Business Media, Berlin, pp 25–31. ISBN 3642272932, 9783642272936Google Scholar
  12. Keene DJ, Mistry D, Nam J, Tutton E, Handley R, Morgan L, Roberts E, Gray B, Briggs A, Lall R, Chesser TJ, Pallister I, Lamb SE, Willett K (2016) The ankle injury management (AIM) trial: a pragmatic, multicentre, equivalence randomised controlled trial and economic evaluation comparing close contact casting with open surgical reduction and internal fixation in the treatment of unstable ankle fractures in patients aged over 60 years. Health Technol Assess 20(75):1–158View ArticlePubMedPubMed CentralGoogle Scholar
  13. Oliveira PR, Carvalho VC, da Silva Felix C, de Paula AP, Santos-Silva J, Lima AL (2016) The incidence and microbiological profile of surgical site infections following internal fixation of closed and open fractures. Rev Bras Ortop 51(4):396–399View ArticlePubMedPubMed CentralGoogle Scholar
  14. Poultsides LA, Liaropoulos LL (2010) Malizos KN The socioeconomic impact of musculoskeletal infections. J Bone Jt Surg Am 92:e13View ArticleGoogle Scholar
  15. Montali A (2006) Antibacterial coating systems. Injury 37(Suppl 2):S81–S86View ArticlePubMedGoogle Scholar
  16. Cats-Baril W, Gehrke T, Huff K, Kendoff D, Maltenfort M, Parvizi J (2013) International consensus on periprosthetic joint infection: description of the consensus process. Clin Orthop Relat Res 471:4065–4075View ArticlePubMedPubMed CentralGoogle Scholar
  17. Fuchs T, Stange R, Shmidmaier S, Raschke MJ (2011) The use of gentamicin-coated nails in the tibia: preliminary results of a prospective study. Arch Orthop Trauma Surg 131(10):1419–1425View ArticlePubMedPubMed CentralGoogle Scholar
  18. Romanò CL, Scarponi S, Gallazzi E, Romanò D (2015) Drago L (2015) Antibacterial coating of implants in orthopaedics and trauma: a classification proposal in an evolving panorama. J Orthop Surg Res 10:157View ArticlePubMedPubMed CentralGoogle Scholar
  19. Holá V, Růžička F, Votava M (2006) The dynamics of staphylococcus epidermis biofilm formation in relation to nutrition, temperature, and time. Scr Med 79:169–174Google Scholar
  20. Romanò CL, Logoluso N, Drago L (2015) Antibiofilm strategies in orthopedics: where are we? In: Baldini A, Caldora P (eds) Peri-operative medical management for total joint arthroplasty. How to Control Hemostasis, Pain and Infection. Springer, Switzerland, pp 269–286Google Scholar
  21. Overstreet D, McLaren A, Calara F, Vernon B, McLemore R (2015) Local gentamicin delivery from resorbable viscous hydrogels is therapeutically effective. Clin Orthop Relat Res 473(1):337–347View ArticlePubMedGoogle Scholar
  22. Pitarresi G, Palumbo FS, Calascibetta F, Fiorica C, Di Stefano M, Giammona G (2013) Medicated hydrogels of hyaluronic acid derivatives for use in orthopedic field. Int J Pharm 449(1–2):84–94View ArticlePubMedGoogle Scholar
  23. Heydemann JS, Nelson CL (1986) Short-term preventive antibiotics. Clin Orthop Relat Res 205:184–187Google Scholar
  24. Antoci V Jr, Adams CS, Hickok NJ, Shapiro IM, Parvizi J (2007) Antibiotics for local delivery systems cause skeletal cell toxicity in vitro. Clin Orthop Relat Res 462:200–206View ArticlePubMedGoogle Scholar
  25. Drago L, Boot W, Dimas K, Malizos K, Hänsch GM, Stuyck J, Gawlitta D, Romanò CL (2014) Does implant coating with antibacterial-loaded hydrogel reduce bacterial colonization and biofilm formation in vitro? Clin Orthop Relat Res 472(11):3311–3323View ArticlePubMedPubMed CentralGoogle Scholar
  26. Giavaresi G, Meani E, Sartori M, Ferrari A, Bellini D, Sacchetta AC, Meraner J, Sambri A, Vocale C, Sambri V, Fini M, Romanò CL (2014) Efficacy of antibacterial-loaded coating in an in vivo model of acutely highly contaminated implant. Int Orthop 38(7):1505–1512View ArticlePubMedGoogle Scholar
  27. Boot W, Vogely HCh, Nikkels PGJ, Pouran B, van Rijen M, Dhert WJA (2015) Gawlitta D local prophylaxis of implant-related infections using a hydrogel as carrier. Eur Cells Mater 30(2):19Google Scholar
  28. Logoluso N, Malizos K, Blauth M, Danita A, Simon K, Romanò C (2015) Anti-bacterial hydrogel coating of osteosynthesis implants: early clinical results from a multi-center prospective trial. Eur Cells Mater 30(2):35Google Scholar
  29. Malizos K, Scarponi S, Simon K, Blauth M, Romanò C (2015) Clinical results of an anti-bacterial hydrogel coating of implants: a multi-centre, prospective, comparative study. Bone Jt J 97-B(16):138Google Scholar
  30. Slobogean GP, Kennedy SA, Davidson D, O’Brien PJ (2008) Single- versus multiple-dose antibiotic prophylaxis in the surgical treatment of closed fractures: a meta-analysis. J Orthop Trauma 22(4):264–269View ArticlePubMedGoogle Scholar
  31. McPherson EJ, Woodson C, Holtom P, Roidis N, Shufelt C, Patzakis M (2002) Periprosthetic total hip infection. Outcomes using a staging system. Clin Orthop Relat Res 403:8–15View ArticleGoogle Scholar
  32. Wilson AP, Treasure T, Sturridge MF et al (1986) A scoring method (ASEPSIS) for postoperative wound infections for use in clinical trials of antibiotic prophylaxis. Lancet 1:311–313View ArticlePubMedGoogle Scholar
  33. Tushar, Sakpal Vijay (2010) Sample size estimation in clinical trial. Perspect Clin Res 1(2):67–69Google Scholar
  34. Romanò CL, Malizos K, Capuano N, Mezzoprete R, D’Arienzo M, Van Der Straeten C, Scarponi S, Drago L (2016) Does an antibiotic-loaded hydrogel coating reduce early post-surgical infection after joint arthroplasty? J Bone Jt Infect 1:34–41View ArticleGoogle Scholar
  35. Gallo J, Holinka M, Moucha CS (2014) Antibacterial surface treatment for orthopaedic implants. Int J Mol Sci 15(8):13849–13880View ArticlePubMedPubMed CentralGoogle Scholar
  36. Chernousova S, Epple M (2013) Silver as antibacterial agent: ion, nanoparticle, and metal. Angew Chem Int Ed Engl 52:1636–1653View ArticlePubMedGoogle Scholar
  37. Mijnendonckx K, Leys N, Mahillon J, Silver S, van Houdt R (2013) Antimicrobial silver: uses, toxicity and potential for resistance. Biometals 26:609–621View ArticlePubMedGoogle Scholar
  38. Noda I, Miyaji F, Ando Y, Miyamoto H, Shimazaki T, Yonekura Y et al (2009) Development of novel thermal sprayed antibacterial coating and evaluation of release properties of silver ions. J Biomed Mater Res B Appl Biomater 89:456–465View ArticlePubMedGoogle Scholar
  39. Panacek A, Kolar M, Vecerova R, Prucek R, Soukupova J, Krystof V et al (2009) Antifungal activity of silver nanoparticles against Candida spp. Biomaterials 30:6333–6340View ArticlePubMedGoogle Scholar
  40. Wafa H, Grimer RJ, Reddy K, Jeys L, Abudu A, Carter SR et al (2015) Retrospective evaluation of the incidence of early periprosthetic infection with silver-treated endoprostheses in high-risk patients: case–control study. Bone Jt J 97-B(2):252–257View ArticleGoogle Scholar
  41. Hardes J, von Eiff C, Streitbuerger A, Balke M, Budny T, Henrichs MP et al (2010) Reduction of periprosthetic infection with silver-coated megaprostheses in patients with bone sarcoma. J Surg Oncol 101(5):389–395PubMedGoogle Scholar
  42. Buchholz HW, Engelbrecht H (1970) Depot effects of various antibiotics mixed with Palacos resins. Chirurg 41(11):511–515 [Article in German]PubMedGoogle Scholar
  43. Burns PR, Lowery NJ, Woods JB (2012) Permanent antibiotic impregnated intramedullary nail in diabetic limb salvage: a case report and literature review. Diabet Foot Ankle 3:10Google Scholar
  44. van de Belt H, Neut D, Schenk W, van Horn JR, van Der Mei HC, Busscher HJ (2001) Staphylococcus aureus biofilm formation on different gentamicin-loaded polymethylmethacrylate bone cements. Biomaterials 22(12):1607–1611View ArticlePubMedGoogle Scholar
  45. Neut D, Hendriks JG, van Horn JR, van der Mei HC, Busscher HJ (2005) Pseudomonas aeruginosa biofilm formation and slime excretion on antibiotic-loaded bone cement. Acta Orthop 76(1):109–114View ArticlePubMedGoogle Scholar
  46. De Grood MP (1951) Pathology, diagnosis and treatment of subdural empyema. Arch Chir Neerl 3(2):128–138Google Scholar
  47. Buttaro MA, Pusso R, Piccaluga F (2005) Vancomycin-supplemented impacted bone allografts in infected hip arthroplasty. Two-stage revision results. J Bone Jt Surg Br 87(3):314–319View ArticleGoogle Scholar
  48. Gautier H, Merle C, Auget JL, Daculsi G (2000) Isostatic compression, a new process for incorporating vancomycin into biphasic calcium phosphate: comparison with a classical method. Biomaterials 21(3):243–249View ArticlePubMedGoogle Scholar
  49. Yamamura K, Iwata H, Yotsuyanagi T (1992) Synthesis of antibiotic-loaded hydroxyapatite beads and in vitro drug release testing. J Biomed Mater Res 26(8):1053–1064View ArticlePubMedGoogle Scholar
  50. Romanò CL, Gallazzi E, Logoluso N, De Vecchi E, Drago L (2015) Antibiotic-loaded regenoss for the treatment of septic bone defects: in vitro study and preliminary clinical experience. J Biol Regul Homeost Agents 29(4):103–110PubMedGoogle Scholar
  51. Guillaume O, Garric X, Lavigne JP, Van Den Berghe H, Coudane J (2012) Multilayer, degradable coating as a carrier for the sustained release of antibiotics: preparation and antimicrobial efficacy in vitro. J Control Release 162:492–501View ArticlePubMedGoogle Scholar
  52. Tang Y, Zhao Y, Wang H, Gao Y, Liu X, Wang X et al (2012) Layer-by-layer assembly of antibacterial coating on interbonded 3D fibrous scaffolds and its cytocompatibility assessment. J Biomed Mater Res A 100:2071–2078View ArticlePubMedGoogle Scholar
  53. Neut D, Dijkstra RJ, Thompson JI, Kavanagh C, van der Mei HC, Busscher HJ (2015) A biodegradable gentamicin-hydroxyapatite-coating for infection prophylaxis in cementless hip prostheses. Eur Cell Mater 2(29):42–55View ArticleGoogle Scholar
  54. Osmon DR, Berbari EF, Berendt AR, Lew D, Zimmerli W, Steckelberg JM, Rao N, Hanssen A, Wilson AR (2013) Infectious diseases society of America. Executive summary: diagnosis and management of prosthetic joint infection: clinical practice guidelines by the Infectious diseases society of America. Clin Infect Dis 56(1):1–10View ArticlePubMedGoogle Scholar
  55. Bratzler DW, Dellinger EP, Olsen KM et al (2013) Clinical practice guidelines for antimicrobial prophylaxis in surgery. Am J Health Syst Pharm 70:195–283View ArticlePubMedGoogle Scholar
  56. Romanò CL, De Vecchi E, Bortolin M, Morelli I, Drago L (2017) Hyaluronic acid and its composites as a local antimicrobial/antiadhesive barrier. J Bone Jt Infect 2(1):63–72View ArticleGoogle Scholar

Copyright

© The Author(s) 2017

Advertisement
