Pseudoaneurysm overlying an osteochondroma: a noteworthy complication

  • Celeste Scotti1,
  • Enrico M. Marone2,
  • Laura E. Brasca3,
  • Giuseppe M. Peretti1, 4,
  • Roberto Chiesa2,
  • Alessandro Del Maschio3,
  • Gianfranco Fraschini1 and
  • Francesco Camnasio1Email author
Journal of Orthopaedics and TraumatologyOfficial Journal of the Italian Society of Orthopaedics and Traumatology201011:116

https://doi.org/10.1007/s10195-010-0116-9

Received: 29 May 2009

Accepted: 19 October 2010

Published: 20 November 2010

Abstract

Pseuodaneurysms are an extremely rare complication of osteochondromas. We describe a case of traumatic pseudoaneurysm of the brachial artery presenting as a soft tissue mass in a patient who was treated for an osteochondroma 3 years earlier. This case demonstrates that radiographic follow-up of large osteochondromas is mandatory and that, in patients with soft tissue masses and a history of osteochondroma, pseudoaneurysms should be included in the differential diagnosis.

Keywords

PseudoaneurysmOsteochondromaSoft tissue massBrachial artery

Introduction

Osteochondromas are hamartomas derived from an aberrant subperiosteal germ of the physeal cartilage and grow by normal enchondral ossification [1]. They are the most common benign tumors of bone, accounting approximately for one third of benign lesions of the skeleton [2]. Nevertheless, as they are usually asymptomatic, the real incidence is probably higher [3]. Patients usually present during the second decade of life [1]. Malignant transformation has been reported as a very rare complication, accounting for <1% and occurring after puberty more frequently in the limb girdles [1, 4, 5]. In cases of hereditary multiple osteochondromas, the risk of sarcomatous change is higher [1, 6, 7].

The radiographic appearance of this tumor is often diagnostic: as a matter of fact, the continuity of the lesion with the underlying native bone cortex and medullary canal is pathognomonic of osteochondroma. Computed tomography (CT) and magnetic resonance (MR) imaging are useful for identifying and studying complications such as malignant transformation, bone fracture, vascular compromise, neurologic sequelae, and overlying bursa formation. The thickness of the cartilage cap is typically 1–3 cm in young patients, whereas in adults, it is often only a few millimeters thick or entirely absent [4, 810]. A continuously growing lesion and a hyaline cartilage cap >1.5-cm thick, after skeletal maturity, suggest malignant transformation. Cortical bone is devoid of mobile protons and shows low signal intensity in all pulse MR sequences, whereas the medullary component has the appearance of yellow marrow. MR imaging is the best radiologic modality for visualizing the effect of the lesion on surrounding structures and evaluating the hyaline cartilage cap. The high water content in nonmineralized portions of the cartilage cap has an intermediate to low signal intensity on T1-weighted MR images and very high signal intensity on T2-weighted images. These features typically allow accurate measurement of the cartilage cap thickness and distinction from overlying muscle on MR images [4, 1113].

Surgical excision is limited to symptomatic osteochondromas; as a matter of fact, when the tumor is asymptomatic, surgery is not recommended [1, 14]. Indications for surgical resection are pain, deformity, compression to a neurovascular bundle, continuous growth, and suspected malignant transformation [1, 14, 15]. However, when a child presents with a large osteochondroma close to a neurovascular bundle, surgery is indicated to avoid further enlargement, which would make surgery more challenging with a higher risk of neurovascular complications. Pseudoaneurysm represents an extremely rare complication of osteochondroma and typically involves the popliteal and femoral arteries [16, 17]. We present a case of posttraumatic pseudoaneurysm of the brachial artery occurring after incomplete resection of an osteochondroma and presenting as a soft tissue mass.

Case report

A 14-year-old boy referred to our department for a slowly growing, nonpainful swelling in the medial upper right arm that he had noticed for 8 months. He had undergone partial resection of an osteochondroma in the posterior aspect of the proximal humerus 3 years earlier. Follow-up was unremarkable. He recalled a blunt trauma in his right upper arm while riding a horse; however, swelling presented some weeks later and was characterized by a gradual enlargement. An X-ray was performed and showed a large sessile osteochondroma in the median side of the proximal humerus. An MRI was performed to study the cartilaginous cap of the osteochondroma for malignant transformation and the soft tissues for a soft tissue tumor. MRI was considered suggestive of a soft tissue tumor, and the patient was referred to our department. Physical examination demonstrated a firm, nonpulsatile, 8-cm swelling in the medial upper arm that was painless during palpation (Fig. 1). There were no signs of vascular or neurologic failure. No enlarged lymph nodes were palpable in the axilla. Bone scan revealed increased uptake at the site of the osteochondroma. MRI performed in our Institute revealed a large, complex mass close to the osteochondroma and the humeral artery. The nonhomogeneous lamellar structure of the mass on MRI, the hyperintensity on T1-weighted sequences, and the regularly capsulated aspect of the contours were suggestive of hematoma–thrombosis (Figs. 2a–c, 3a). Due to these characteristics, the hypothesis of malignant transformation was difficult to asses. The MR angiography facilitated the diagnosis, as it showed a pseudoaneurysm arising from the compressed brachial artery with extravasation of contrast medium into the mass (Fig 3b). Angiography confirmed the diagnosis of pseudoaneurysm measuring 35 mm of patent lumen and provided a useful map for surgical planning (Fig. 3c). On T2-weighted MRI, an aspect of concentric rings was observed due to the presence of thrombus into the pseudoaneurysm that did not diffusely enhance with contrast material. In this case, the difficulty of recognizing the cartilage cap on T2 sequences because of the overlying pseudoaneurysm, hyperintensity on fat-suppressed proton density (PD)-weighted sequences, and enhancement of the medulla after contrast media could not exclude malignant transformation (Fig. 4a– d). Therefore, surgical exploration was mandatory. At operation, a longitudinal incision was made on the right medial upper arm. The nerve was identified and preserved. The brachial artery was controlled above and below the pseudoaneurysm with nylon tape (Fig. 5a). The pseudoaneurysm sac was opened and the thrombus removed (Fig. 5b). After retrograde flow was restored, a 7-cm arterial segment that included the pseudoaneurysmal region was resected, and marginal resection of the osteochondroma was performed (Fig. 5c, d). Reversed saphenous vein interposition graft was then performed (Fig. 5d). The wound was closed and a suction drain was left in situ. At the end of the procedure, there were good radial and ulnar pulses palpable. Specimens of the sac wall and thrombus were negative following histopathological and microbiological examination. Histopathological diagnosis was osteochondroma. The patient was discharged and followed up in the outpatient clinic. Patient gave consent to the publication of this report.
Fig. 1

Preoperative clinical image

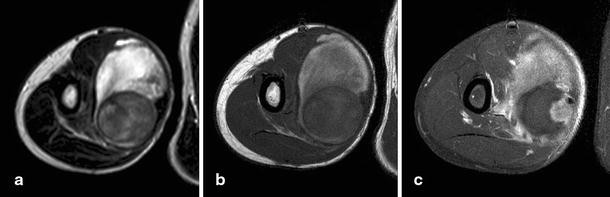

Fig. 2

Axial magnetic resonance image (MRI) T2 (a), T1 (b) and T1 turbo spin echo (TSE) fat-saturation (c) sequences. The mass has inhomogeneous signal on T2- (a) and T1- (b) weighted sequence, concentric aspect, regular contours (a, b) and did not diffusely enhance due to the presence of pseudoaneurysm, thrombus, and hematoma (c)

Fig. 3

Coronal magnetic resonance imaging (MRI) T1 turbo spin echo (TSE) (a), MR angiography (b), and digital angiography (c). MR angiography (b) identifies the pseudoaneurysm arising from the compressed brachial artery, with extravasation of contrast medium into the mass, well demonstrated also by the angiography (c)

Fig. 4

Axial magnetic resonance imaging (MRI) T2 (a), proton-density fat saturation (PD fat-sat) (b), T1 turbo spin echo (TSE) (c), T1-TSE fat-sat (d) sequences of the osteochondroma underlying the pseudoaneurysm. Note hyperintensity of the medulla adjacent to the lesion on PD sequences (b) and enhancement of the medulla itself after contrast media (arrow) (d)

Fig. 5

Intraoperative images (ac). The brachial artery and the pseudoaneurysm were isolated and the artery was controlled with nylon tapes (a); the pseudoaneurysmal sac was opened and the thrombus removed (b); a 7-cm arterial segment including the pseudoaneurysm was resected, highlighting the underlying cartilaginous spur (arrow) of the osteochondroma, which probably caused the pseudoaneurysm (c); the osteochondroma was resected, and a reversed saphenous vein interposition graft was then performed (d)

Discussion

Pseudoaneurysms are a rare complication of osteochondromas and they are more frequent after the end of the enchondral ossification phase, when the cartilaginous cap become bony and sharp [17]. A hard swelling is the most common pattern of clinical presentation [17]. The most frequent site of this complication is the distal femur, whereas the arm is an extremely rare site, with only a few cases of pseudoaneurysm of the brachial artery reported in the literature [1821]. Repair of the arterial injury is seldom possible. When an end-to-end anastomosis cannot be performed, graft replacement with the autologous saphenous vein or with a synthetic graft is preferred [17]. As a matter of fact, in our case, the extent of the pseudoaneurysm made the brachial artery non-reparable, and the vascular surgeon opted for a reconstruction with a saphenous vein graft.

The case presented here is quite unusual, but the clinical presentation reflects the typical case found in the literature: an adolescent male, already treated for a large osteochondroma in an area with high risk of neurovascular compression, reporting a sport-related injury. The differential diagnosis included malignant transformation and Ewing’s sarcoma, so we performed contrast-enhanced MRI and angiographic MRI to rule out these diagnoses. MRI is mandatory for evaluating such atypical masses in children and adolescents [22]. Moreover, malignant transformation is extremely rare in adolescence [1], and Ewing’s sarcoma often presents with other signs and symptoms, such as fever, increased serum lactate dehydrogenase and erythrocyte sedimentation rate, leukocytis, and anemia [23], which were not present in our patient. Therefore, according to the patient’s history of blunt trauma, to MRI features, and to the surgical findings of close proximity of the pseudoaneurysm to a cartilaginous spur, the diagnosis was traumatic pseudoaneurysm caused by an osteochondroma. This case shows how important it is to perform adequate resection of a large osteochondroma arising in close proximity to neurovascular structures. On the other hand, osteochondromas in adolescence may spontaneously regress [15] or recur, even after adequate resection, so that a radiographic follow-up is mandatory [1].

In conclusion, we emphasize the importance of correct treatment and follow-up of large osteochondromas in dangerous regions in order to avoid such complications. We also encourage the orthopedic oncologist to include pseudoaneurysms in the differential diagnosis of soft tissue masses, especially when there is a history of osteochondroma resection.

Declarations

Conflict of interest

None.

Open Access

This article is distributed under the terms of the Creative Commons Attribution Noncommercial License which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.

Authors’ Affiliations

(1)
Department of Orthopaedics and Traumatology, San Raffaele Scientific Institute
(2)
Department of Vascular Surgery, San Raffaele Scientific Institute
(3)
Department of Radiology, San Raffaele Scientific Institute
(4)
Faculty of Exercise Sciences, University of Milan
